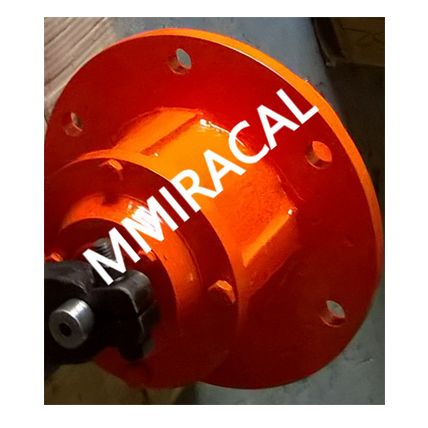

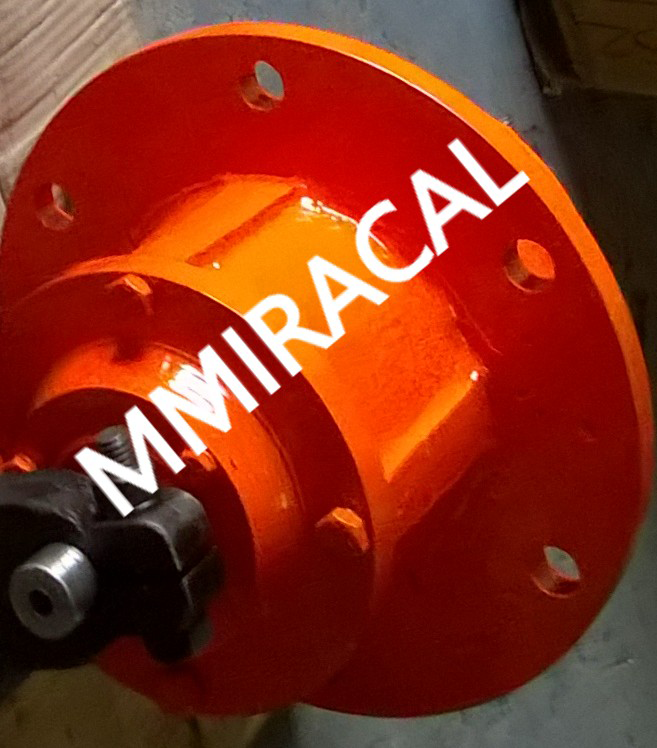

V series of Vibrator Motors are specially developed for variable individual application to suit all working environments.
The Vibrator Motors develops centrifugal force from 5 kg (50 N) to as much as 8000 kg (80000 N).
Higher and non standard rating Vibro Motors on request.
Technical Specification
Bearings : Roller Bearings
Material : C.I. Grade 25, Spheriodical C.I & Steel (Optional)
Power Supply : Vibrator Motors are suitable for 220V - 1Ø , 415V -3Ø , and 50 / 60 Hz. Power supply
Operations : S1, S4, S7
Mechanical Protection : IP 44, IP 55, IP 66 (on request)
Electrical motor : Energy Efficient Motors with vaccum Impregnated stators. An extra moisture proof coating is provided on the status for improving the mechanical strength.
Insulation Class : Class F ( 155°C ), Class H ( 180°C ).
Drive Shaft : This is made of treated steel alloy able to withstand high stress
Eccentric Weights : Each vibrator is supplied with two weights on each side as per the requirement of centrifugal force, along with a graduated scale.
Casing & Bearings : Casings made of high graded CI (Grade 25) and cast steel castings are also available. The bearings are exclusively supplied by SKF for Vibro Motors applications.
Thermal protection : Thermistor of class F (155°C) available on request.
Note : Due to continuous Research & Development based on Market Feedback models, shapes and dimensions are subject to changes without notice. Kindly confirm the dimensions at the time of order.
