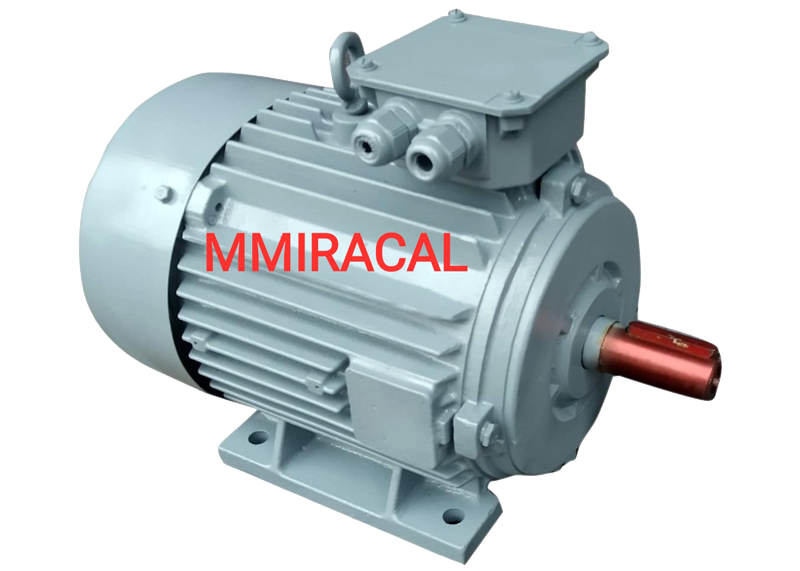

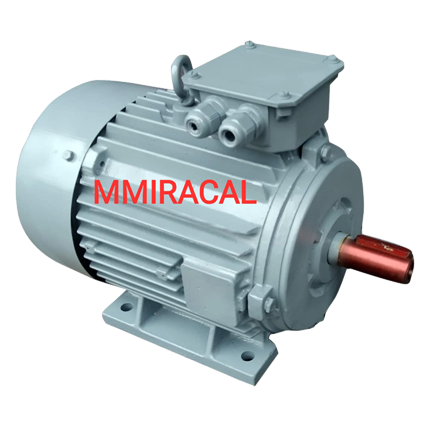

Torque Motors

Frame

Torque Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame. In the application Which Need to drive motor on Low Rpm for long time or continues we suggest higher Frame size.

Insulation

Torque Motors are supply with class F insulation as standard feature Also supply H on request of customer.

Ratings

Torque motors are Design to Work Continues. Torque Motor Supply with S1 Duty.

Voltage and Frequency

A c Torque Motor Supply volts 415 ± 5% 50 Hz. ± 3% customer request we are also able supply motor in 220, 380, 460, 525 volts on 50 or 60 Hz also.

Protection

Hollow Shaft Motor are IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Shaft & Rotor

Torque Motor Rotor is positive locking with joint so that cannot move on high Full lord Torque. Shafts and Rotor are made by En-8 material. Every rotor is dynamically balanced. It's make motor low amplitudes of Vibration & noise.

Protection

We are supply motor with Ingress protection 44 Protection as defined in IS: 4691.

Enclosure

Torque motors are Supply with Enclosure T.E.F.C. and T.E.S.C. For Sp. Application Where need to run motor in more than 75% lower Rpm for that We supply Torque motor with Force cooling arrangement. it can improve to motor winding longer life and trouble free working.

Thermal Over protection

We can also supply Torque motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Bearings & Lubrication

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly

Terminal Box

All Torque Motor Supply with Terminal box on top position For Foot mounted (B3). Others position box like left or right supply on customer request

Earthling Terminals

Torque Motors provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints

All Torque motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Application

Torque motor used in textile industries, wire/cable winding machine, plastic industries, paper mill machine, Steel rolling industries, machine tools, etc. Torque motor widely Use in Application where need to material wind on drum or beam.
