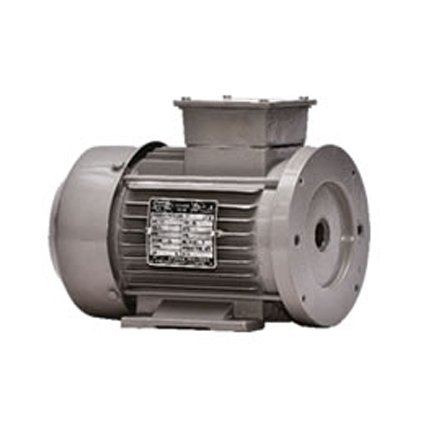

Hollow Shaft Motors

Standards

All Hollow Shaft Motor Three Phase Motors Performance conforms to dimensions according to Customer or as per Application Requirement.

Frame

Three Phase Hollow Shaft Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

Ratings

All Hollow Shaft Motor Standard Three phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency

Three phase Hollow Shaft Motor Supply volts 415 ± 5% 3 phase 50 Hz. ± 3% We are also capable for Manufacturing three phase motor in different volts and frequency Like 220, 380, 460, 525

Protection

Hollow Shaft Motor are IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Terminal Box

All Three phase Motor Supply with Terminal box on top position For Foot mounted (B3). Other position box like left or right supply on customer request

Shaft

Hollow Shaft Motor shaft Made from high carbon steel Pipe to provide exceptional Strength & rigidity to minimize deflection. We can also supple motor with stainless steel hollow shaft.

Rotor

All Hollow Shaft Motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Bearings & Lubrication

Hollow Shaft Motor Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Enclosure

Hollow Shaft motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).

Thermal Overload Protection

We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Earthing terminals

Three Phase Hollow Shaft Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints

All Hollow Shaft Motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Application

Hollow shaft Motor are widely Use in Pump, Gear Box, Chemical industries, Textile ect.
